Without a universal joint (or U-joint), you will not be able to drive a vehicle. To make sure from the a healthy body of the car as well as your safety on the highway, you ought to be able to get the signs of bad universal joint.

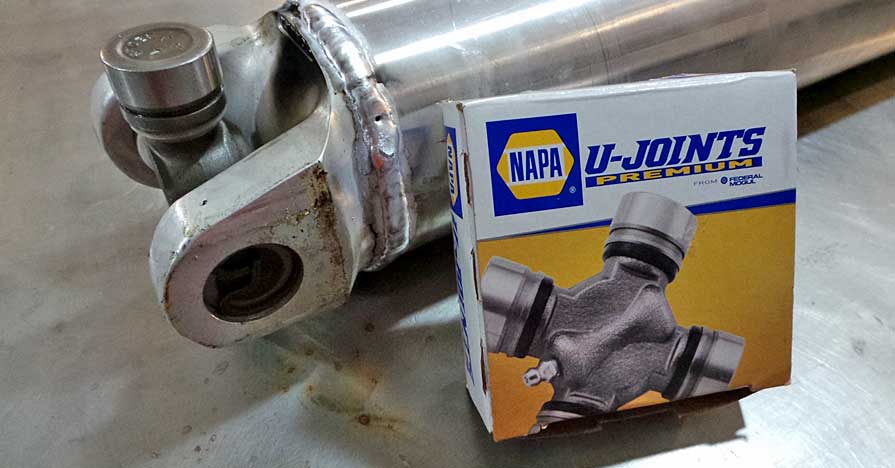

What Is really a Universal Joint?
The U-joint is really a driveshaft component that is found in rear-wheel-drive trucks, four-wheel SUVs and drive trucks, and off-road vehicles.
This component transfers power in the transmission to the differential and comprises for the height misalignment between the transmission and the rear axle. Present in pairs around the driveshaft assembly, you can't drive a vehicle without functioning U-joints.
Each end of the driveshaft is linked to some U-joint. With each rotation from the driveshaft, the joints bend to fix the misalignment. Rear-wheel-drive cars nowadays use constant-velocity joints instead of the U-joints for smoother driveshaft rotations.
Signs of Bad Universal Joint: Cues to consider.
There will be some symptoms of failing universal joints. Picking up these warning signs of the bad U joint is likely to save your valuable car from being towed to a repair shop.
Squeaking noises.
Does your vehicle squeak if this starts moving after starting off the engine? It becomes noticeable when the car progresses or goes into reverse but disappears when the vehicle accelerates to in excess of 5 to 10 mph.
Why does this happen? The universal joints have bearing components that are greased in the factory. Now, this greasing may be used up or evaporated over time. Each rotation of the driveshaft makes the bearings twist a little. So, dry bearings cause metal-to-metal contact, and excessive friction leads to squeaking noises and corrosion.
The screeches are a reminder to possess a professional mechanic diagnosing and servicing the universal joints. Timely servicing will extend the lifespan of the joints and save the driveshaft from breaking down.
A clunking sound.
Clunks are signs of bad universal joint, especially when you hear them when shifting the automobile from 'Drive' to 'Reverse'.
The clunking sound means the bearings permit the driveshaft to rotate just a little before stopping hard when the power is reversed. This can simply be the next stage of producing squeaks due to insufficient grease amount in the bearings. Some damage has already been done at this stage that you cannot undo but servicing will definitely slow the ruination down.
Vibrations while accelerating.
The next phase of clunky bearings is really a strong vibration felt throughout whenever you accelerate the automobile. This is a result of the imbalanced movement from the driveshaft.
When the grease dries up and the bearings are worn enough not to have the ability to control the driveshaft's movement. Its deviation from the regular rotational route causes that vibration.
Are you acquainted with the vibrations caused by imbalanced wheels? The regularity of the vibration will be more intense just because a driveshaft rotates a minimum of 3 times quicker compared to wheels.
This symptom means that the U-joints have started affecting other components, including the transmission. An analysis and repair job is necessary only at that period if you want to prevent further damage.
- The Reasons behind a Car Speedometer not Working
- What Do the Transmission Fluid Colors Mean?
Transmission fluid leaking.
This fluid leaks for many reasons and bad U-joints are among them. You can be sure about it once the leakage happens in the trunk of the transmission.
If you ignore the vibrations, unstable driveshaft rotations are likely to need replacing the transmission tailshaft bushing and output shaft seal, resulting in the leaking from the fluid.
When this happens, thoroughly examine the transmission to discover the origin of the leak and take repair actions.
The car doesn't move.
This is the last step of U-joints failure. You might have already seen a vehicle stationed on the side of a road using its driveshaft lying underneath. It means that the driveshaft literally breaks down and disjoints in the rear axle or transmission. Repairing at this time may need the replacing the driveshaft and much more.
How Long Are you able to Drive having a Bad U Joint?
When the U-joints completely fail, you're left with no other option than towing the car to some mechanic. To avoid this, you should get the signs of bad universal joint discussed above.
Normally, the U-joints last the lifetime of an automobile. But anything in your car can break down anytime, so the joints may also need replacement.
If they aren't running properly, you will need to replace them as quickly as possible. Also, make sure to replace them in pairs to prevent more troubles later on. If you want to drive for some time with bad U-joints, do it without running on 4WD. Using 4WD can make the shafts explode or rip apart.
The safest option for you and the vehicle is to seek specialist when you begin noticing the signs and symptoms of failing U-joints.
