While most of us take it for granted, the capability steering system is an important component of your vehicle. Sooner or later, the parts that comprise the actual steering system can wear out. External factors, such as the tie stick ends and hyperlinks wear out much faster compared to the internal components, so you will experience servicing people parts regularly. The internal components, which include the hydraulics and steering carrier & pinion unit, last considerably longer, so servicing those things is a fairly rare incidence.
When you do have to service the internal system, it must be performed correcly. The most common failure is really a broken line. This is certainly easily replaced on no detriment towards rest of the system. If the pump fails, nonetheless, the likelihood of further harm is very good. When a electricity steering pump fails, there is usually a good level of metal shavings delivered through the lines. This shavings wreak havoc on this valves and seals, meaning that the power assist purpose will quickly die, and even take out the new push as well if it is not replaced at the same time.
Replacing the steerage rack is not actually difficult, but there are several steps that you need to enjoy order to ensure that it is finished correctly and that the particular repair lasts. Personal hygiene is the key to a steering rack replacement. Discover a DIYer, your local NAPA AutoCare Heart will be able to manage that job with ease.
Common Steering Carrier Problems
The most common failure in a very steering rack could be the seals. Most direction racks use O-rings to seal the internal components. There are 2 separate systems at work inside a power-assist rack & pinion: the hydraulics (power assist), plus the mechanics (steering). Both the systems share a pinion gear inside the top portion of the main casing. The pinion gear functions through the hydraulic servo. For the reason that pressurized fluid operates through the valve, every movement of the pinion devices (which is connected to the direction column) rotates your spool valve to line up with the correct move ports. When the controls is centered (simple position), the material bypasses the spool valve. The spool control device directs the pressurized fluid to the suitable side of the assist piston inside the longer tube of the prescribing rack. This provides a assist for steering. There are numerous lines as well as valves that need an O-ring closure. Because they are under critical pressures exceeding 2,000 psi, they are at risk of failing.

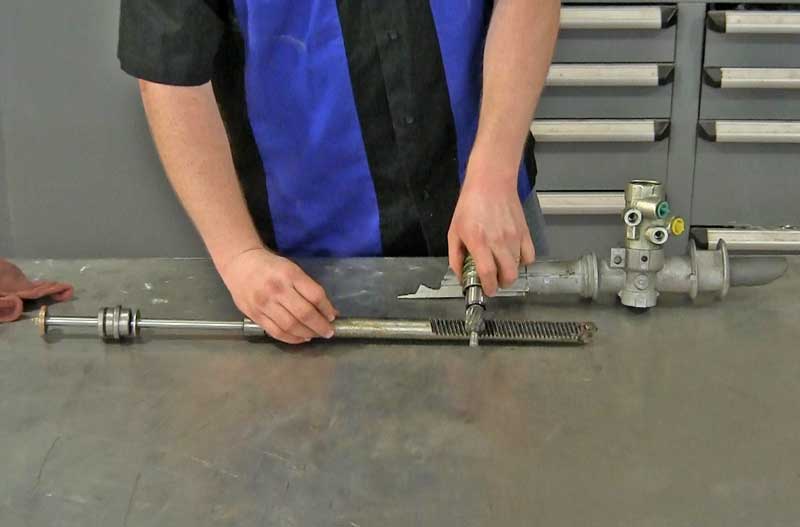

Inside the advice rack is the pinion items which rides for the rack gear mainly because shown. The pinion items is also part of the gas valve.
The mechanics of the rack are certainly more basic, but nonetheless capable of unable. The pinion gear adventures on the rack (which is attached to the piston). We have a mesh setting, this can be get out of alignment through wear or bricks-and-mortar damage, and bring about hard or free steering. Some holders have the steering golf coming out of the end of machine, over time these can get damaged or even tape out the threads, which requires complete replacing of the steering tray unit.
Tips For Prescribing Rack Replacement

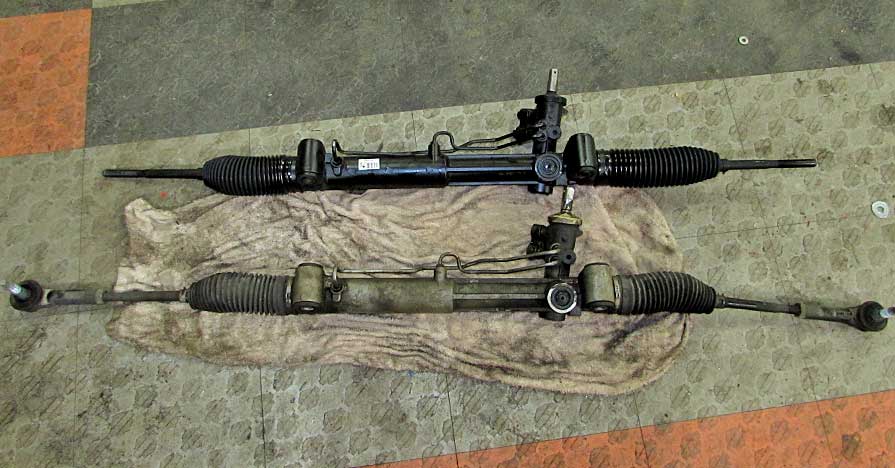

It is possible to be able to rebuild the finalizes on a steering carrier, but the process is usually lengthy and the deeper internal seals are definitely more difficult to change not having special tools. Substitution is typically the most cost effective alternative. The process for replacing a rack will take 4-6 hours, make and model changes differ or training. Removing the rack will involve disconnecting the steering linkage, eliminating the tie rods, disconnecting this hydraulic lines, therefore the rack itself. There’s two types of rack mounts- bushed lugs or even clamps. This rack proven below (from a 2017 Avoid Challenger) uses your bushed lug style. This can be the rack itself. Take note the two large lug bosses just to the inside of the bellows. These are the carrier mounts. This is an end-steer slab, where the steering biceps and triceps come out of the ends. The other style of holder is center guide, where the steering biceps and triceps are mounted to a tie rod tavern.

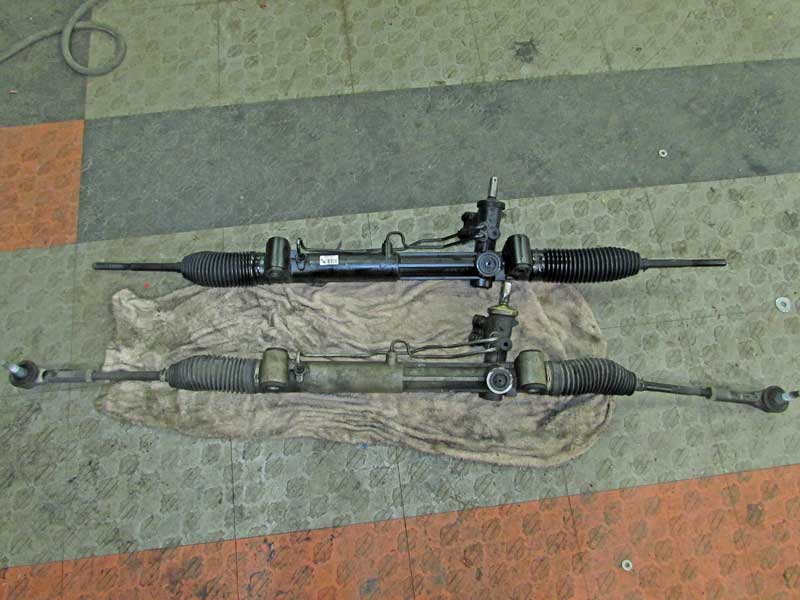

The new rack can be on top, the old carrier is on the bottom. They must be identical.
The installation may be a reverse of the treatment, in the same structure, with the exception of the hydraulics. All those need to be cleaned up initial. Now is the time to inspect any lines for spaces, bulges or vulnerable spots that could induce issues in the future. If in good shape, each collection must be thoroughly flushed with brake clean if they are to be reprocessed.

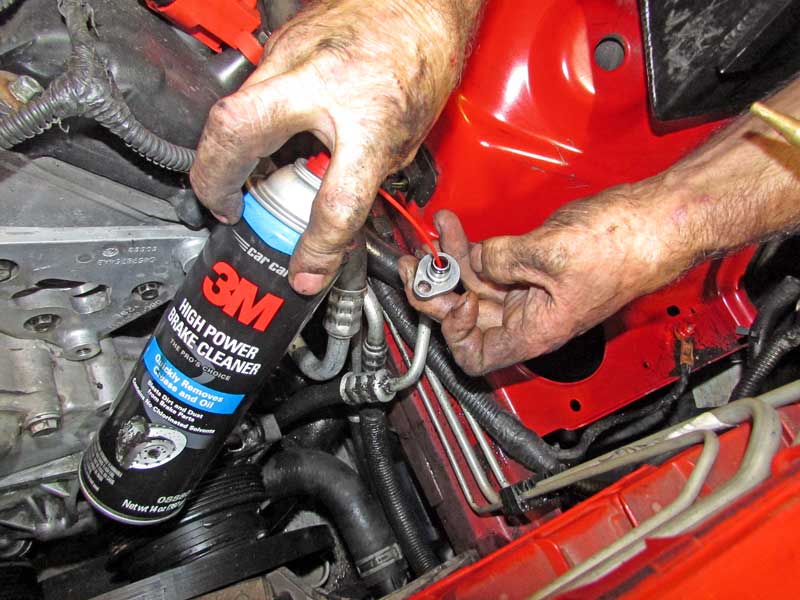

Every line must be purged when a rack is changed. Failure to do so normally voids the warranty over the new part.
For additional reservoir systems, such as this one, the reservoir needs to be cleaned out as well. Most people sprayed this utilizing brake cleaner, blowing it out with compressed air and then replicated several times. Installing some sort of magnetic inline filter to your return line of it is a good idea. The separate out goes in the go back line from the stand to the reservoir. This unique works for both bodily and mental reservoir pumps.

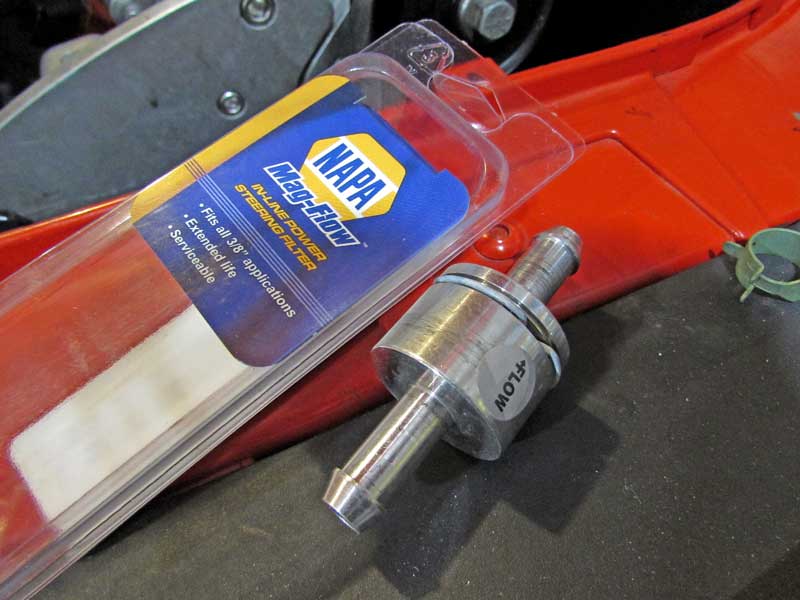

Purchase a good inline filter with your completely new rack to protect every one of the components from debris harm.
With the new rack installed and connected, its filled new electrical power steering fluid in addition to purged. To purge air from the system, this steering wheel is made 15-20 times lock to lock with the serps off. At this point, your engine was going and the system was working properly. Within the next handful of miles, some more air pockets are going to be dislodged, lowering the fluid stage in the reservoir, so that it should be checked for several days and additional fluid added in as needed.

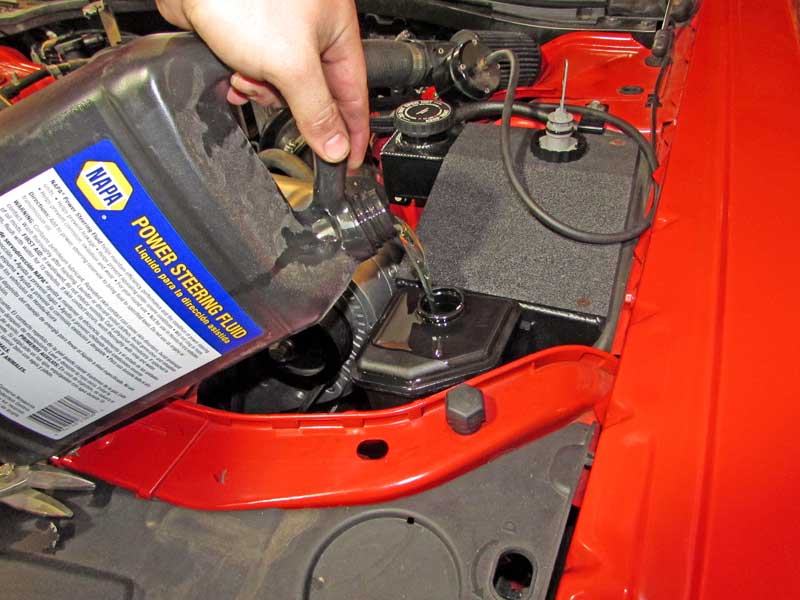

The last measure is filling the unit with fresh substance and purging the environment.
Any time the steering system is modified, the passenger truck must be aligned. A few NAPA AutoCare Centers can do the following in-house, some do not. It is not a small issue, malfunction to have your prominent suspension aligned causes erratic handling and permanent tire dress in damage within a 75 miles. By taking the ideal steps, your new direction rack will last a great deal of service and get you back on the road.
